INTRODUCING THE CWT MULTI-BAL 5000 VERTICAL BALANCER:
Balance flywheels and much more..."Remember, if it rotates, you can balance it!"™

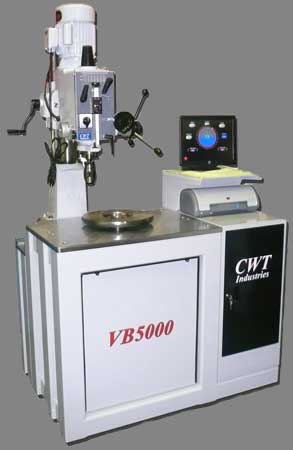

The newest CWT balancing machine:
The VB5000 (Vertical Balancer) utilizes the latest in computer driven hardware, and is supported with our own proprietary software. This control software is key to its speed and accuracy - a feature unmatched by the competition...
CHECK OUT OUR NEW VB5000 MOVIE!

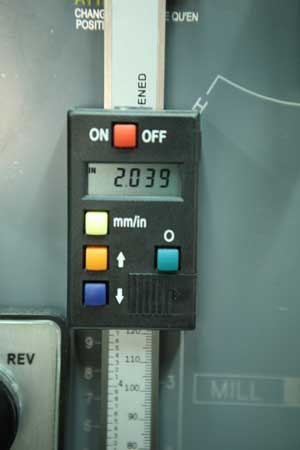

Features an electronic drill-depth gauge for perfect results:

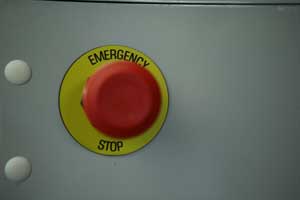

Safety is paramount on all CWT machines, with an easily accesible emergency stop button:

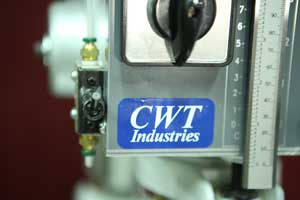

Air-powered sliding rails make positioning the drill easy. Note the air ON/OFF switch below:

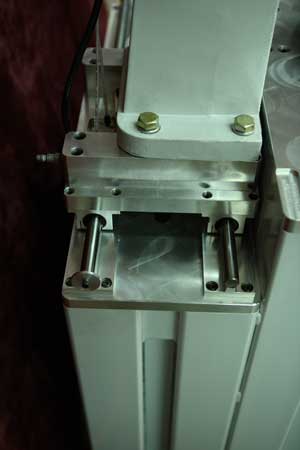

"Air glide" guide rails for drill adjustment:

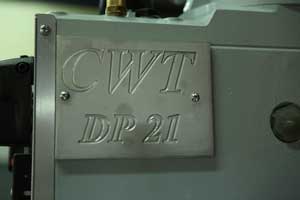

Heavy-duty construction throughout, with many CNC machined billet parts:

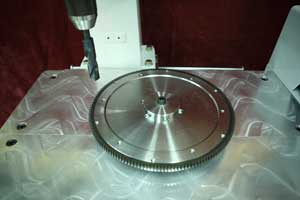

Typical application - a clutch flywheel:
The VB5000 Vertical Balancer: More information...
The VB5000 is typically configured for single-plane balancing; a dual-plane upgrade is available. One unique feature of the VB5000 is its ability to do "split-drilling". This is useful, for example, when a spin analysis determines that a drilling point would be in an area you do not want to drill - i.e. where a mount hole or weak area on the application might be present. In this case, the on-screen controls allow the technician to select "multi-drill" and make two smaller drill points in a "V" configuration from where the original "heavy" point was on the application.

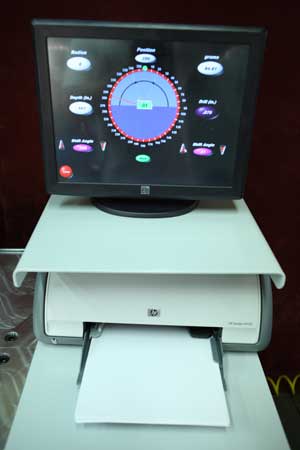

All of this is extremely easy to perform with CWT's proprietary computer-controlled on-board touch screen software!
This machine is not just limited to automotive flywheels. CWT has the engineering capability, know-how, and experience to custom build a machine for any application. From large fans to turbine applications and much more, CWT can balance it.
Crankshaft balancer model CWT MB-175 CAT info here
Please visit our turbocharger balancing machine page to check out our latest balancer:
Like us on Facebook:
Mr. Randy Neal at PRI demonstrating the Multi-Bal 5000 Crank Balancer's ability to estimate a job BEFORE you drill:
See the CWT Multi-Bal 5000HD (Heavy Duty) balancing machine spinning a 1200 LB Cummings QSK-60 16 cylinder crankshaft on the Multi-Bal 5000 crank balancer webpage and our the movie of the HD model balancing machine on the product movies page
CWT specializes in balancing machines, crank and crankshaft balancers, line hones, and more.
We can build balancing machines for powerplants, pumps, generators, and power system applications.
