CRANKSHAFT BALANCER:

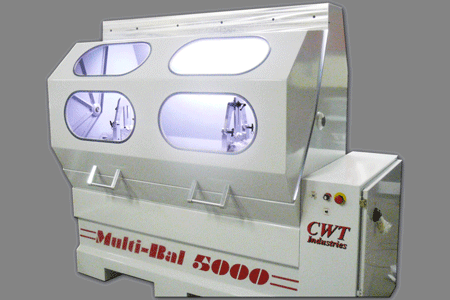

INTRODUCING THE CWT MULTI-BAL 5000 CRANKSHAFT BALANCER - THE ULTIMATE BALANCING MACHINE



Balance crankshafts and much more..."Remember, if it rotates, you can balance it!"

Check out our crankshaft balancing machine movies!

Download Adobe PDF datasheets: 1 / 2



The best balancing machine available today - features "Third Plane Analysis". "HMV", and "PDQ"!

CWT Multi-Bal 5000 Balancer is the best balancing machine available today - we offer "Third Plane Analysis", “HMV” Heavy Metal Analysis and “PDQ” Precision Drill Qualifying  combined with touch screen controls, High Resolution Electronics and the heaviest base in the industry.  We simple allow a more accurate and timely method of processing the balancing jobs, features unmatched by the competition...

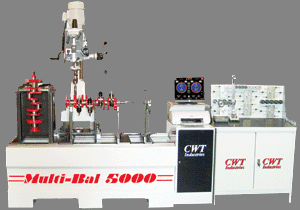

The Multi-Bal 5000 Balancer now comes with a Heavy Duty Work Cabinet that has been designed to support all of the Bob-Weight materials and Direct Weight Scale System. Both the Table Top and Back Support are constructed with 3/16 steel that will allow aggressive mounting and positioning of components without distortion of the balancing machine.

Features Overview:

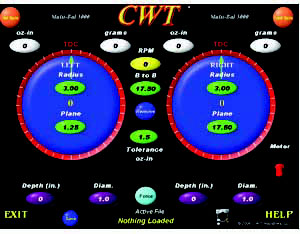

Here is a screen-view of the balancing machine control software's main screen:

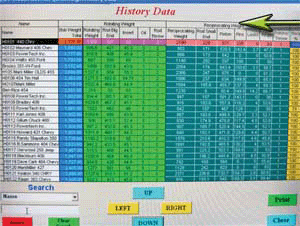

Our software also offers unlimited data storage for bob-weight information, part numbers, and part description:

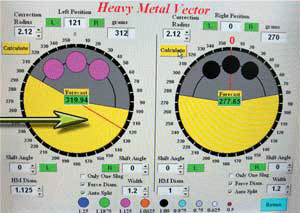

Our "Heavy Metal" vector allows accurate placement of heavy metal slugs...eliminates hours of labor and mistakes:

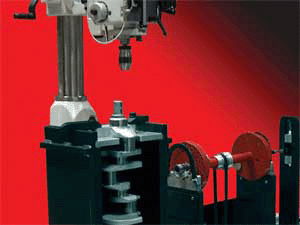

Our available heavy metal stand:

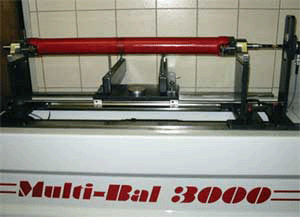

Here is a shot of balancing drive-line tooling:

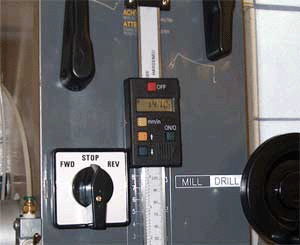

The drill includes a drill scale:

The Multi-Bal 5000 Crankshaft Balancer: More information...

The analyzing electronics built into our balancer are state-of-the-art, which allows our machine to give you extremely fast and accurate analysis of a crankshaft or rotating part.

This allows "real time" updating of the correction requirements before you cut the first chip.  This single feature will allow you to quickly and accurately correct the unbalanced crankshaft.  You can complete work two to four times faster than with any other balancing machine available on the market today.

The balancing machine itself weighs 4090 pounds.  The base, filled with a special resin material, eliminates any residual vibration.  The entire casting is encapsulated with steel to give it a long and durable life.  Each bed is cured for six weeks and all mounting registers are machined in our CNC machining center.  This construction insures perfect mounting of our stanchions and optional drill platform.

Our cast drill platform can be moved from position to position with fingertip motion.  The key is the linear roller system that is standard on all drill platforms.  Once you have positioned the drill, our heavy-duty air clamp system holds the drill (or mill/drill) firmly in place.

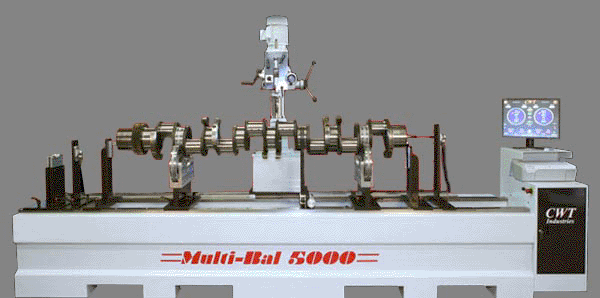

We offer custom-built balancer models in addition to our popular Multi-Bal 5000 balancing machine. Pictured below is our Multi-Bal 5000HD (Heavy Duty) balancing machine spinning a 1,200 pound crank!:

Please call us today to see what balancing machine might best fit your needs.

The bottom line expectation of any balancing machine should be accuracy and profit...this balancing machine provides just that.  It can open the door to new potential markets, such as industrial balancing machine applications...balancing pumps, armatures, and roll pin shafts are just a few of the considerations.
